The 8040DT
Muscle. Versatility. Speed. Results.

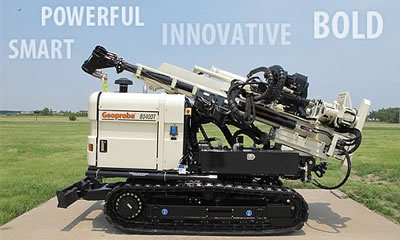

The Geoprobe® Model 8040DT is a high-capacity direct push machine with a durable undercarriage, hollow stem auger capabilities, and a wide-base platform.
With the GH80 Hammer, this machine is capable of driving 2.25 in, 3.5 in. and 4.5 in tooling in areas that were previously unthinkable.

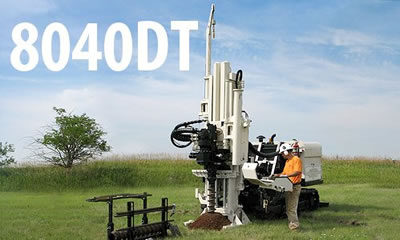

You just gotta see the 8040DT in action!
Multiple Applications
The Geoprobe® 8040DT arrives with exciting new possibilities, increased power, more versatility, and the push you need to stay ahead of the game!
As with all direct push machines, the hammer is critical to how well the machine performs in the field. The GH80 Hammer on the 8040DT is capable of driving 2.25 in. and 3.5 in. tooling to greater depths in tougher formations.
Designed into the 8040DT is a long list of features. The machine incorporates a two-speed hydraulic top head for classic auger/drilling methods for lithologies not conducive to direct push techniques.
8040DT Specs
| Weight (standard machine) | 17,500 lb. | 7,938 kg |
| Width | 80 in. | 2,032 mm |
| Length (folded) | 176 in. | 4,470 mm |
| Length (unfolded) | 190 in. | 4,826 mm |
| Height (folded) | 99 in. | 2,515 mm |
| Height (unfolded - winch mast down) | 153 in. | 3,886 mm |
| Height (unfolded - winch mast up) | 232 in. | 5,893 mm |
| Extension (fore and aft) | 15 in. | 381 mm |
| Lateral Swing . | ±8 degrees | |
| Oscillation | ±10 degrees | |
| Vertical Travel (CB8 Combo Head) | 84 in. | 2,134 mm |
| Side Shift Travel (CB8 Combo Head) | 26 in. | 660 mm |
| Head Feed Speed (down) | 32 ft/min | 10 m/min |
| Head Feed Speed (up – no Regen) | 26 ft/min | 8 m/min |
| Head Feed Speed (up – Regen) | 63 ft/min | 19 m/min |
| Down Force | 59,000 lb. | 262 kN |
| Retraction Force | 80,000 lb. | 356 kN |
| Percussion Hammer System | GH80 | |
| Percussion Hammer Rate | 32 Hz | |
| Torque (high torque/low speed) | 6,000 ft-lb. | 8,135 N·m |
| Torque (low torque/high speed) | 3,000 ft-lb. | 4,067 N·m |
| Rotation speed (low speed/high torque) | 0 - 100 rpm | |
| Rotation speed (high speed/low torque) | 0 - 200 rpm | |
| Fuel Capacity (diesel) | 40 gal | 151 L |
| Engine (diesel) | CAT®, 4-cylinder turbocharged | |
| Engine Power | 120 hp | 90 kW |
| Surface Load Pressure (standard machine) | 6.8 psi | 47 kPa |
| Hydraulic Oil Reservoir | 55 gal | 208 L |
| Hydraulic Flow (max) | 100 gpm | 379 Lpm |
| Hydraulic System Pressure (max) | 4,000 psi | 276 bar |
| Auxiliary Hydraulic Outlets Flow | 0 - 12 gpm | 0 - 45 Lpm |
| Auxiliary Hydraulic Outlet Pressure | 3,000 psi | 207 bar |
| Winch Pull Back | 2,500 lb | 1,134 kg |
| Winch Line Speed | 0 - 140 fpm | 0 - 43 mpm |
| Winch Mast Stroke | 63 in. | 1,600 mm |
| Ground Speed | 3.0 mph | 4.8 kph |
*Unit specifications are subject to change without notice.
